项目地点:南京市江宁区
项目类型:住宅展示区
占地面积:17000平方米
建筑面积:3000㎡
景观面积:14000㎡
容积率:1.0绿化率: 35%
客户名称:南京华麟置业有限公司
景观设计:深圳奥雅设计股份有限公司北京分公司
建筑设计:北京三磊建筑设计有限公司
景观施工:上海园林
设计时间:2016.8
竣工时间:2017.4

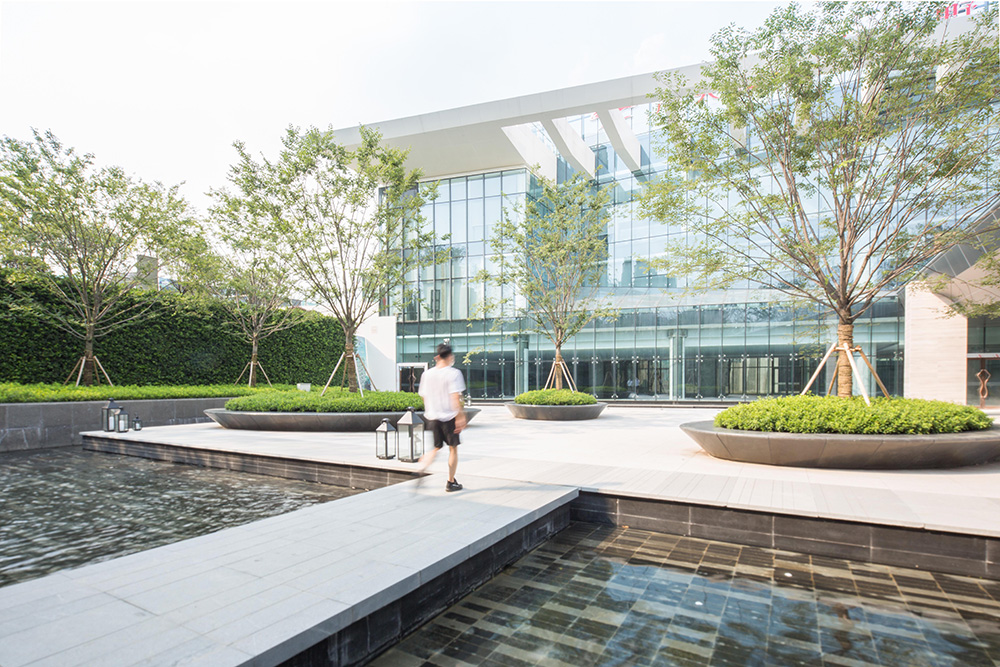

京奥港·未来墅位于“江南佳地,金陵帝王州”之称的南京,全区建筑为现代风格超高层,展示区建筑为地上两层地下一层玻璃体,景观场地本身并无特殊性,原本可以不费力气的打造一个传统的展示空间,但业主和设计师们怀揣着一颗不甘于平庸的心,给自己出了三个难题。
场地现状中有一个“坑”

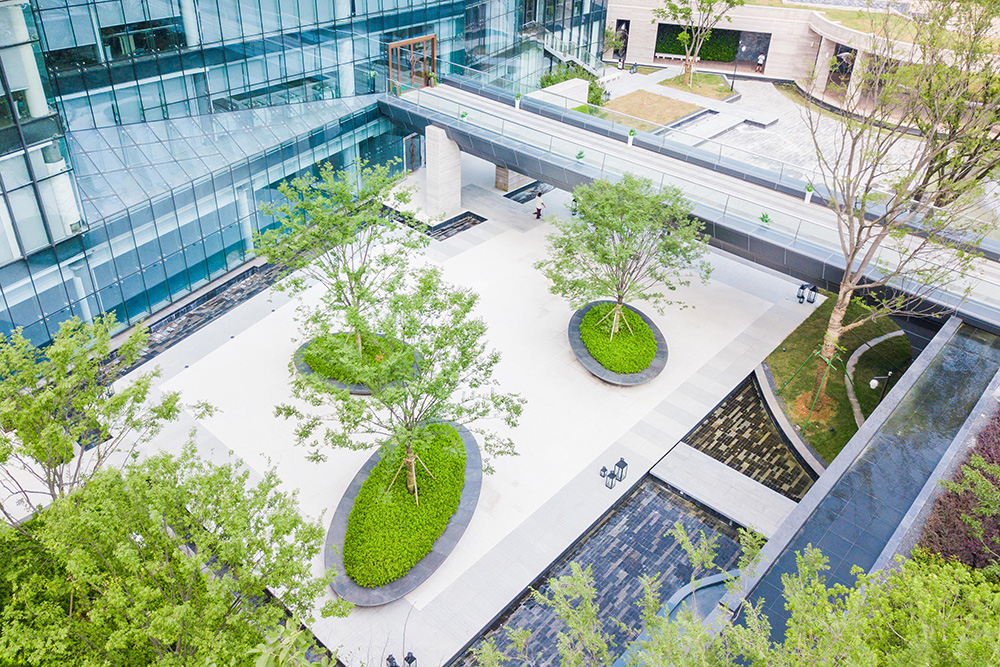

建筑地下一层为室内阳光泳池,模型条件中一道桥从一层标高的景观连接到了建筑主入口,顿时觉得展示区空间变得不同寻常。
水景虽然很多,我们更需要“惊喜”
瞻园的假山,将人包裹在瀑布的氛围中,人可以游走其间;于是,我们“任性”地创造了一个水帘洞。

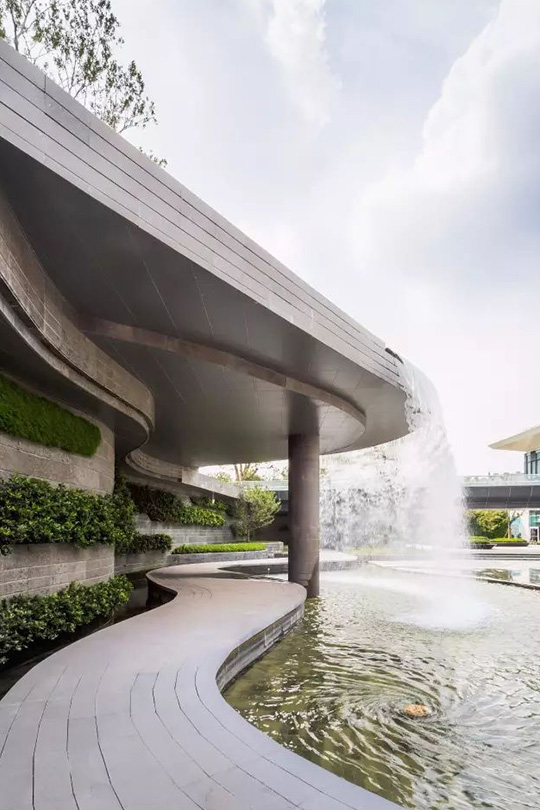

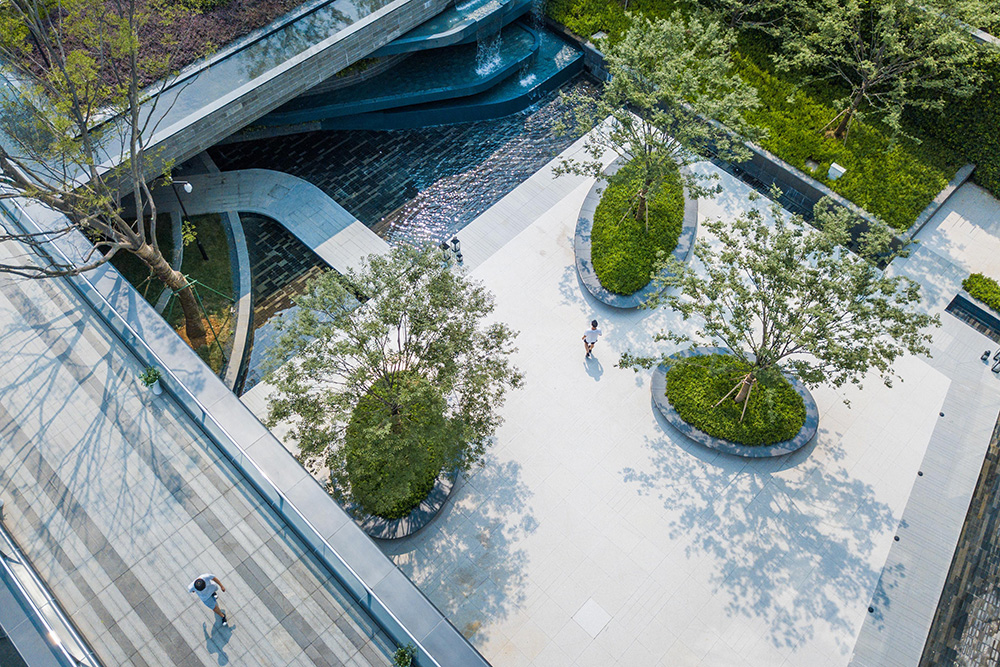

270度范围内连续悬臂结构的处理
采用国内的PKPM与国际上的MIDAS GEN通用结构设计软件相互校对设计结果。经过多轮优化方案,最终采用了这种借助了背面的挡土墙刚度来协同吸收地震水平力,而前单柱仅承担轴向压力的结构方案,这样不仅解决了水景的抗震和抗水平力问题,而且大大缩小面支撑单柱的截面,最终仅用一颗直径60公分柱子支撑起了200平米巨大水景的重量。
Project Location: Jiangning District, Nanjing
Project Type: Residential Demonstration Area
Land Area: 17,000 ㎡
Floor Area: 3,000㎡
Landscaping Area: 14,000㎡
Floor Area Ratio: 1.0
Green Coverage Rate: 35%
Project Client: Nanjing Hualin Real Estate Co., Ltd
Landscape Architecture: Shenzhen Branch, L&A Group
Architectural Design: Beijing Sunlay Architectural Design Co., Ltd
Landscape Construction: Shanghai Gardens
Design Time: August 2016
Completion Time: April 2017
JAG Future-villa is located in Nanjing, which was known as "the best place south of the Yangtze River and the place where emperors chose as their capitals". In this project, in the demonstration area, a glass building was designed with two floors above ground and one floor below, so as to harmonize with the surrounding modern high-rise residence. Facing challenge-free existed environmental conditions, the project client and designers gave up creating an ordinary demonstration area, to challenge themselves with three design problems to build a unique one.
Create a "Hole" in the Field

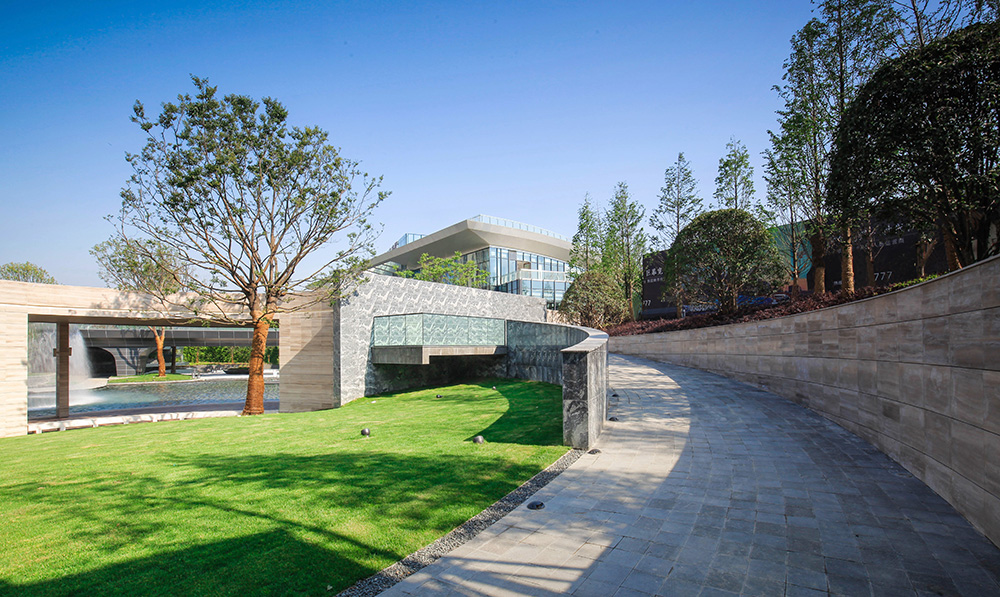

An indoor sun-drenched pool was designed on the basement level. After that, designers added a bridge across the pool to the main entrance of the building to create the uniqueness for the demonstration area.
Break the Rules and Create an Amazing Waterscape Design

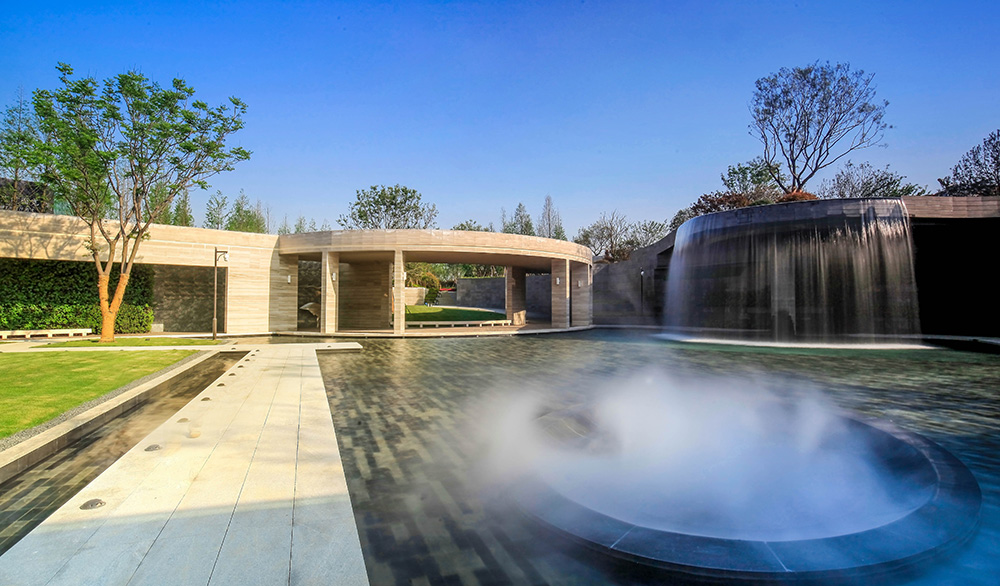

Strolling in the rockery of Zhanyuan Garden, the oldest existing classical garden of the Ming Dynasty, people feel as if they were surrounded by waterfalls. In order to give visitors the similar experience, designers creatively designed a water curtain cave in the demonstration area.
270 m Continuous Cantilever Structural Design

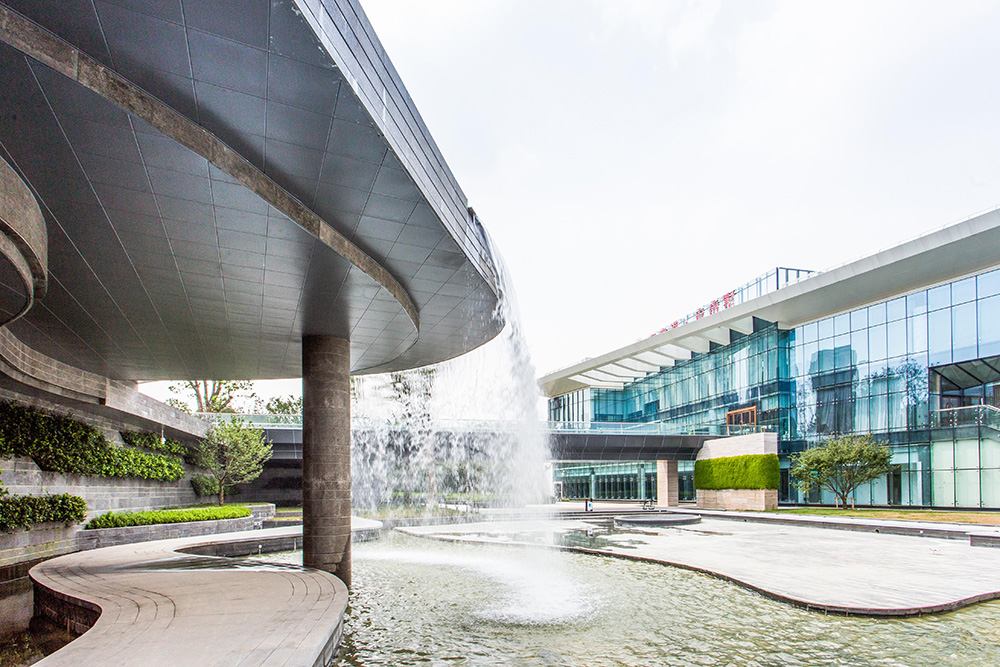

After comparing the design results in the domestic structural design software PKPM with the international structural design software MIDAS GEN for many times, designers finally adopted a structural scheme that retaining wall on the back absorbs the horizontal seismic force, while the front single column only bears the axial pressure. The structure scheme not only solved the seismic and horizontal force problems of the waterscape, but also greatly reduced the cross-sectional area of the supporting column. As a result, a 60-cm-diameter column greatly supported the 200-square-meter waterscape.
